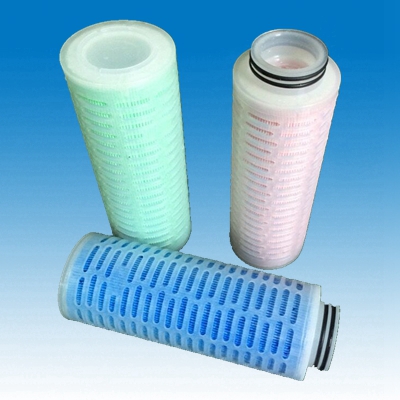

Hi-flow cartridges filters
| Features |
 |
|
◇ Excellent chemical compatibility .Sutable for filtering organic solvents,acid bases,Pleated design increased thefiltration area
◇ Low pressure drop,long service life
◇ Full range of removal ratings
◇ Graded pore density for high dirt holding capacity
◇ FDA compliance material
|
| Specification |
|
◎ Material: PP,PES,PTFE,PVDF
◎ Micron Rating:0.1,0.2,0.45,0.65,1,3,5,10 Micron
◎ Length: 9.5"
◎ Inner diameter/ Outer diameter: 45 mm / 83mm cusmtomized dimension available
|
| Operating Condition |
|
◎ Maximum operating forward pressure: 1~25 Micron：2.5 bar 50~100 Micron：2.1 bar
◎ Recommended replaceable pressure drop: 1.5 bar
◎ Maximum operating temperature: 80°C
|
| Application |
|
| ◇ High Temperature Fluids |
◇ Air Fresher |
| ◇ Food and Beverage |
◇ Fine Chemical |
| ◇ Pharmaceutical Industry |
◇ Solvents |
| ◇ Vehicle Manufacture |
◇ Petroleum Oils |
| ◇ Petrochemical |
◇ Hydraulic Oil |
| ◇ Hydrocarbons |
◇ Chloride |
|
|
|
| Product Code |
 |
|
